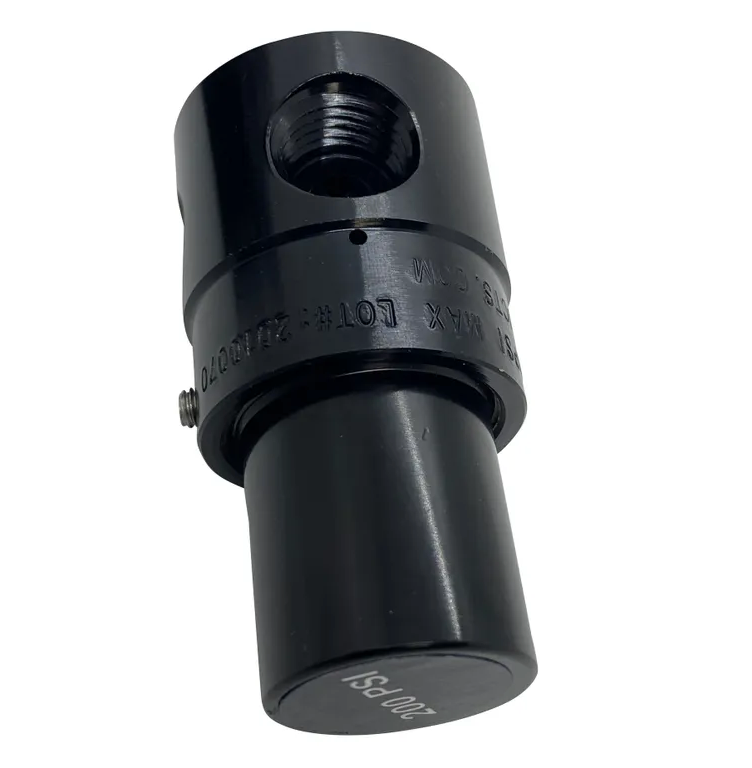

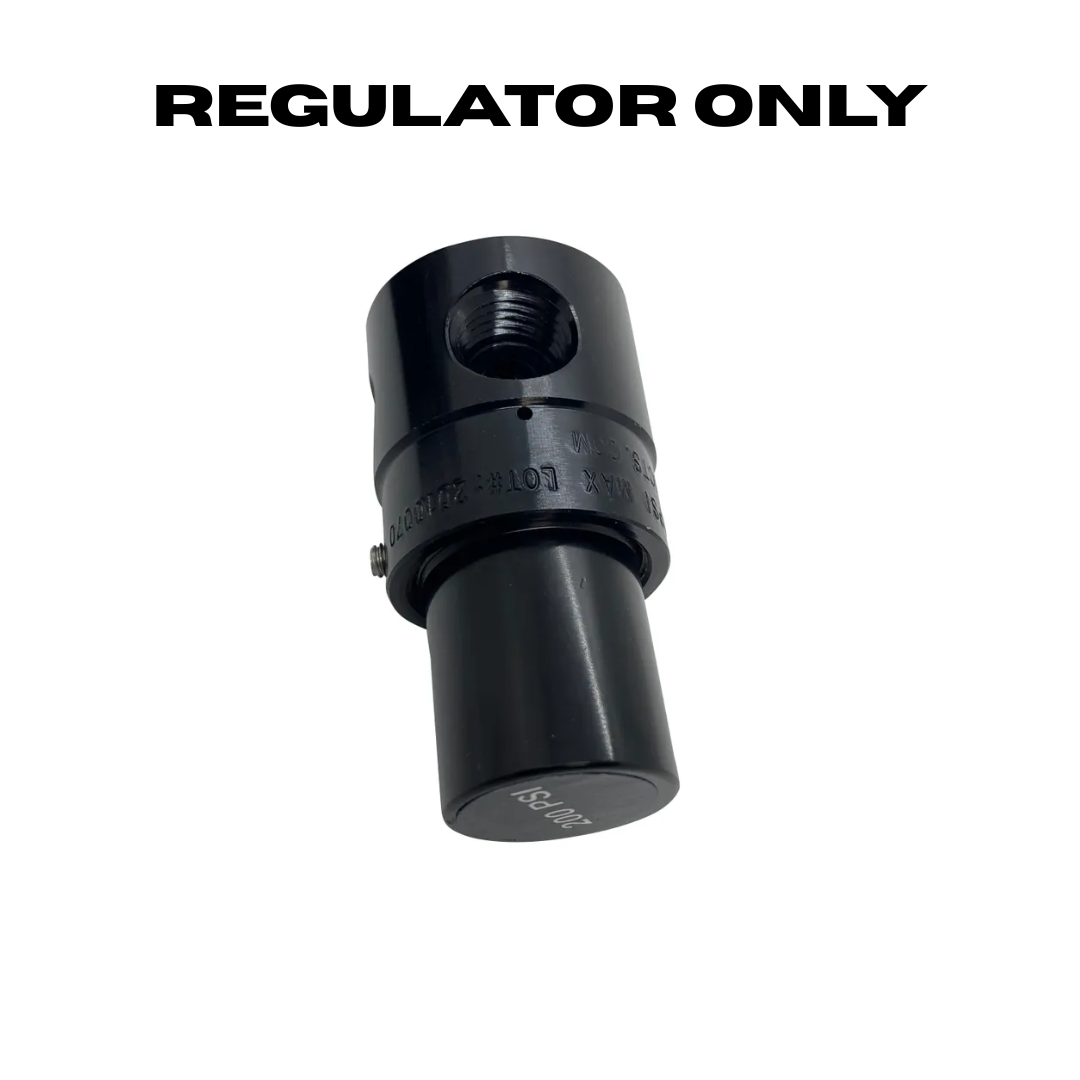

Racing Fixed Flow Piston Regulators
Racing Fixed Flow Piston Regulators
Couldn't load pickup availability
These performance regulators are highly engineered for demanding applications. They allow for preset fixed flow pressures from one single pressure source.
Each regulator has two high pressure and two low pressure ports for many configurations, including gauges and outlet fittings.

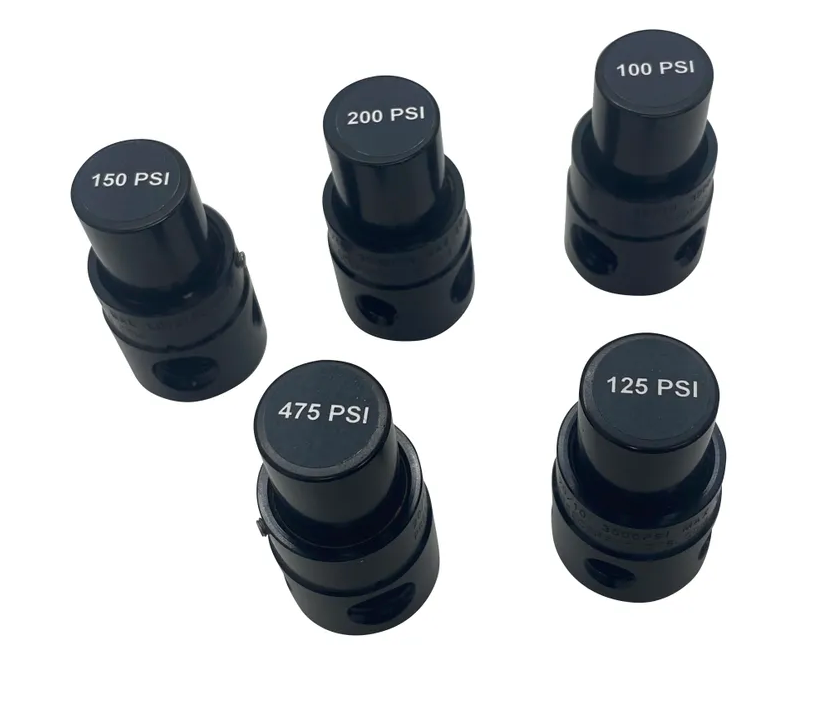

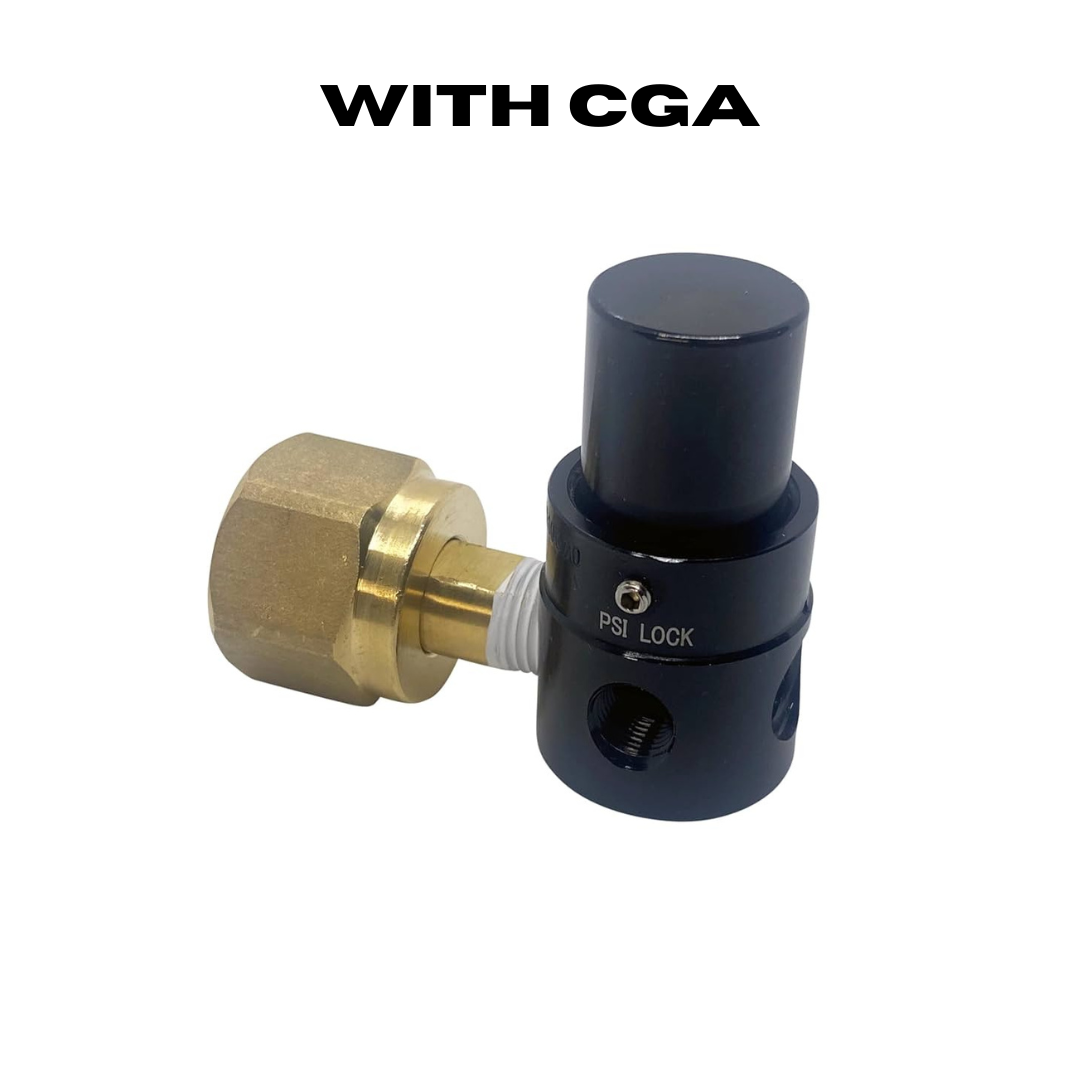

Regulators are available at fixed pressures of 100 PSI, 125 PSI, 150 PSI, 200 PSI and 475 PSI, but the unique design also allow for simple field adjustment from two outlets with a range of 50-500 PSI without the need of filing springs and/or using shims and washers. Just loosen the "PSI LOCK" set screw, adjust the knob to the desired pressure and lock the screw!
Run multiple components from one single pressure source, designed to be compatible with Air, Co2, Nitrogen or Nitrous Oxide.
Specifications:
- Precision Machined Lightweight Aluminum
- Black Anodized
- High Flow Capacity
- 3000 PSI maximum inlet pressure
- Factory preset outlet pressures 100, 125, 150, 200 & 475 PSI
- Range of outlet pressure:50-500 PSI
- (2) TWO 1/8" Female NPT Outlet (Low Pressure)
- (2) TWO 1/4" Female NPT Inlet (High Pressure)
KTR approved. Built to perform. Ready for the win.
