Fluidworks Single Outlet -16AN / Single -16AN Inlet Fuel Post Filter w/ mount (10 Micron) 27-177

Fluidworks Single Outlet -16AN / Single -16AN Inlet Fuel Post Filter w/ mount (10 Micron) 27-177

Regular price $299.99 USD
Regular price $329.99 USD Sale price $299.99 USD
Sale Sold out
Inlet Fitting
Outlet Fitting

Fluidworks Single Outlet -16AN / Single -16AN Inlet Fuel Post Filter w/ integrated mount (10 Micron) 27-177

Designed with the EFI user in mind! This filters allow a single feed line inlet and TWO outlets which allows you to easily feed each side of a fuel rail on a two fuel rail system, doing so eliminates two fittings and a Y fitting or 2 additional leak points and makes routing lines much easier.

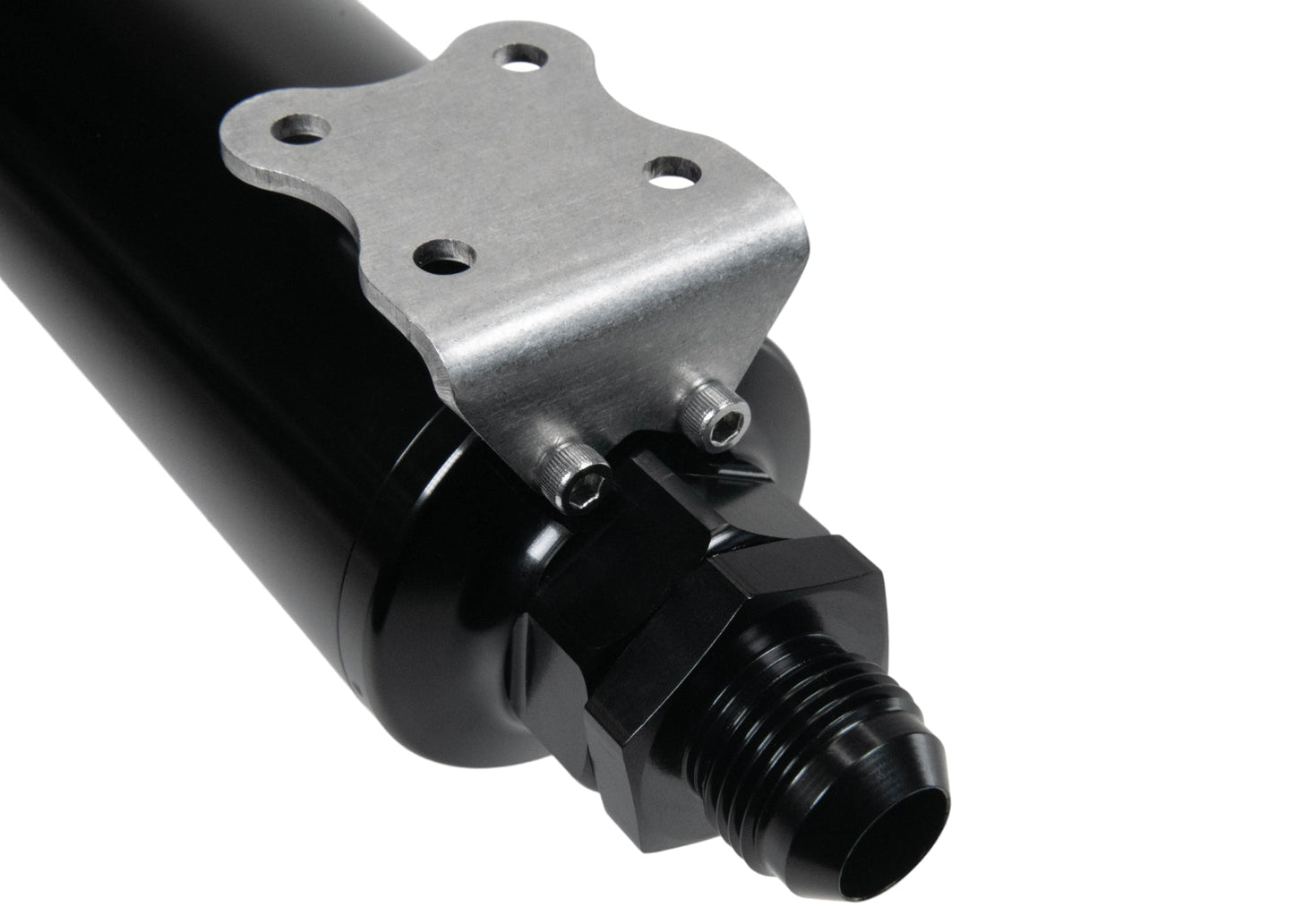

The integrated bracket system has a simple two bolt design that makes the filter mounting easy by bolting OR welding. The mounting bracket also allows you to unscrew the other side of the filter to service or replace the filter element without unbolting the bracket and fully removing the filter from the vehicle.

Note: 10 micron is the filtration size that most fuel injector manufacturers call for pre injectors.

Features:

  • Single 16ORB Inlet
  • Single 16ORB outlet
  • Integrated mounting bracket for low profile and easy mounting solution
  • Completely Made in the USA
  • Billet Construction
  • Integrated
  • True 10 micron Microglass Element
  • Supports fuel systems up to 32GPM
  • Approved for use with Gasoline, Oxygenated, Ethanol and Alcohol Fuels
  • Hard anodized

*For Racing Use Only*

Find -16ORB to AN Adapter Fittings: Click Here

Completely Made in the USA

For 10 micron replacement element: Click Here

We recommend replacing the micro glass filter often to reduce the risk of blockage due to the size of the filter pores. These filters are not able to be reused or cleaned unlike the stainless 100 micron. Failure to replace this may cause premature failure and extra stress on fuel pump.
