Motion Raceworks

Motion Billet Gen 4 Race LS Valley Cover - 10-10033RACE

Motion Billet Gen 4 Race LS Valley Cover - 10-10033RACE

Regular price $163.99 USD
Regular price Sale price $163.99 USD
Sale Sold out
Add Adapter for Factory Oil Pressure Sensor

Motion Billet Gen 4 LS Valley Cover 10-10033RACE

This valley cover was designed to solve all of the needs in building a Gen 4 race engine while making it look REALLY good on top of any engine.

The rear oil sensor location on this cover is modular.  Folks utilizing a factory style computer or factory style oil sensor can add the billet oil pressure block which bolts on and allows use of factory sensor.  For those wanting to use a mechanical gauge or aftermarket oil pressure sensor, simply leave the block off of the back and there are 1/8" NPT threads in the valley cover that allow use of gauge adapters and 1-100 psi pressure transducers.

Features include:

  • CNC machined from 6061 T6 Aluminum
  • Made in the USA
  • Uses factory valley cover gasket
  • Stainless hardware included
  • Uses factory gasket
  • Same height as factory cast cover for intake clearance
  • Trussed design weight savings

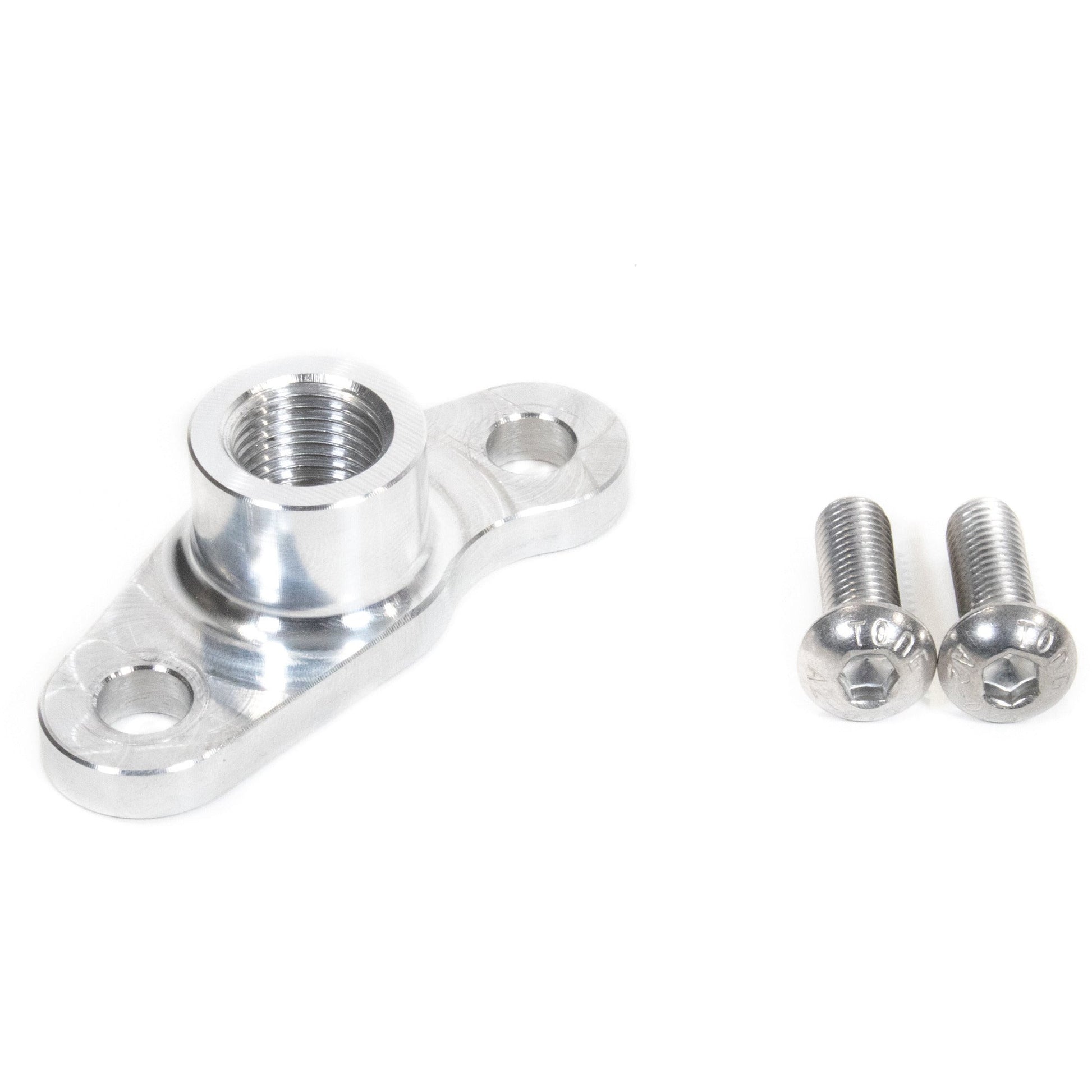

  • Add on sensor block allows you to bolt on factory oil pressure sensor without modification (factory height overall)

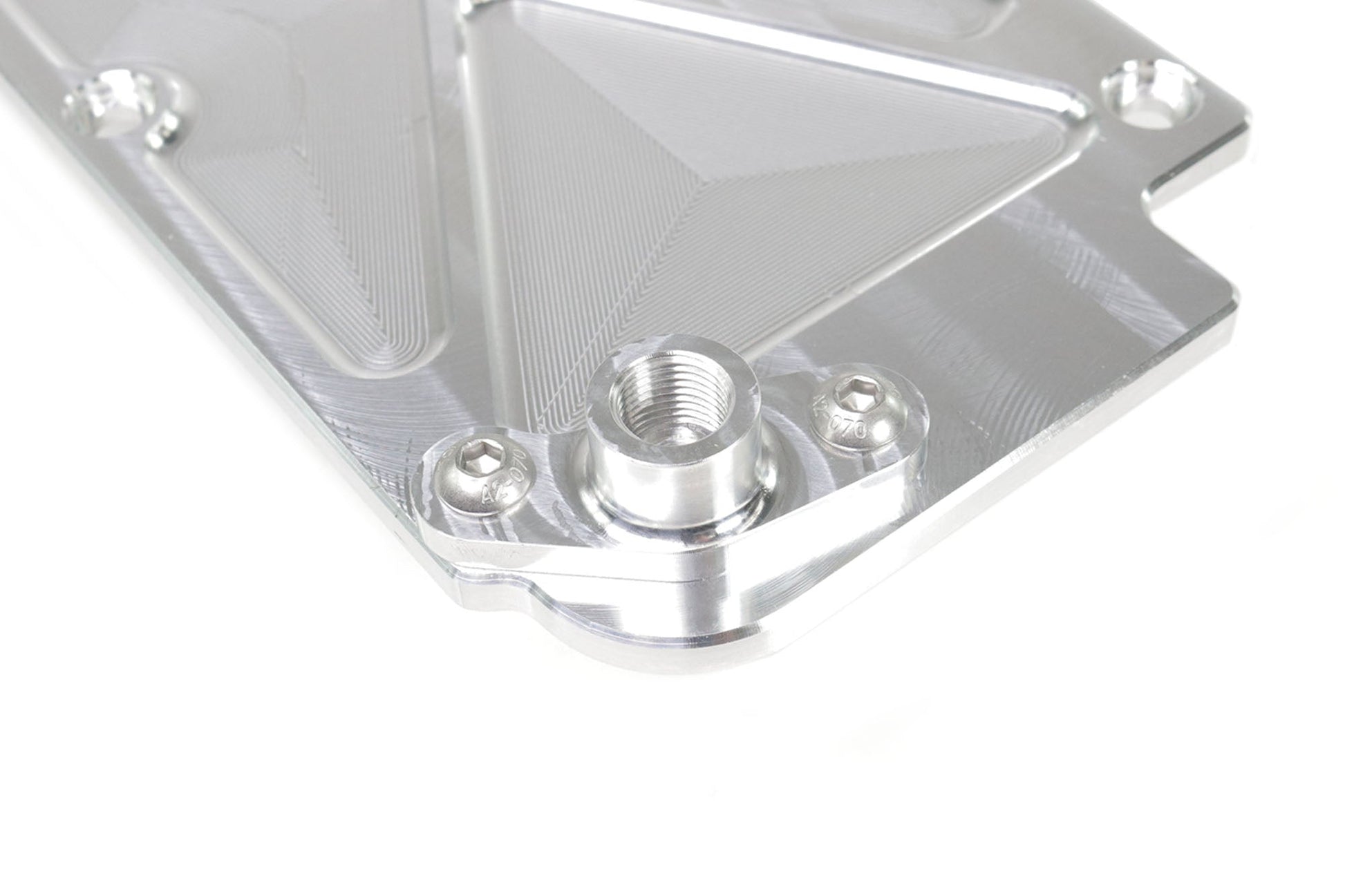

  • 1/8" NPT oil port built into valley cover for aftermarket sensors
  • Fits LS3, LS7, LSA, LS9, LSX, Dart and other Gen 4 LS blocks

Note: This cover does not have provisions to block off AFM/DOD ports in the valley. For this cover please see our other Gen 4 Valley Cover. Click

 No Oil Pressure Sensor Block Included
