RIFE 5 Bar DTM Series MAP Sensor 1/8" NPT

RIFE 5 Bar DTM Series MAP Sensor 1/8" NPT (53-5Bar)

RIFE Sensors are designed to perform in the harshest environments while delivering world class data and accuracy.

These screw in MAP sensors utilize the same state of the art proprietary sensor core used in our RIFE pressure blocks, with a specially designed body. These stainless sensor bodies hold the sensor core on an O-ring to better isolate the sensor from engine and road vibrations to create a more durable and dependable sensor.

This 5v style MAP Sensor works great with Holley EFI, Haltech, Fueltech, MS3 Pro, Racepak, and more!

All RIFE MAP Sensors are quality checked for functionality, sealing/leaks, and are held to accuracy of +/- .5% in order to provide the end user with the best possible data on the market!

*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

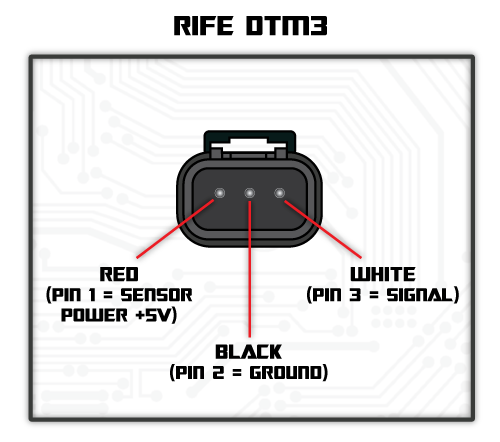

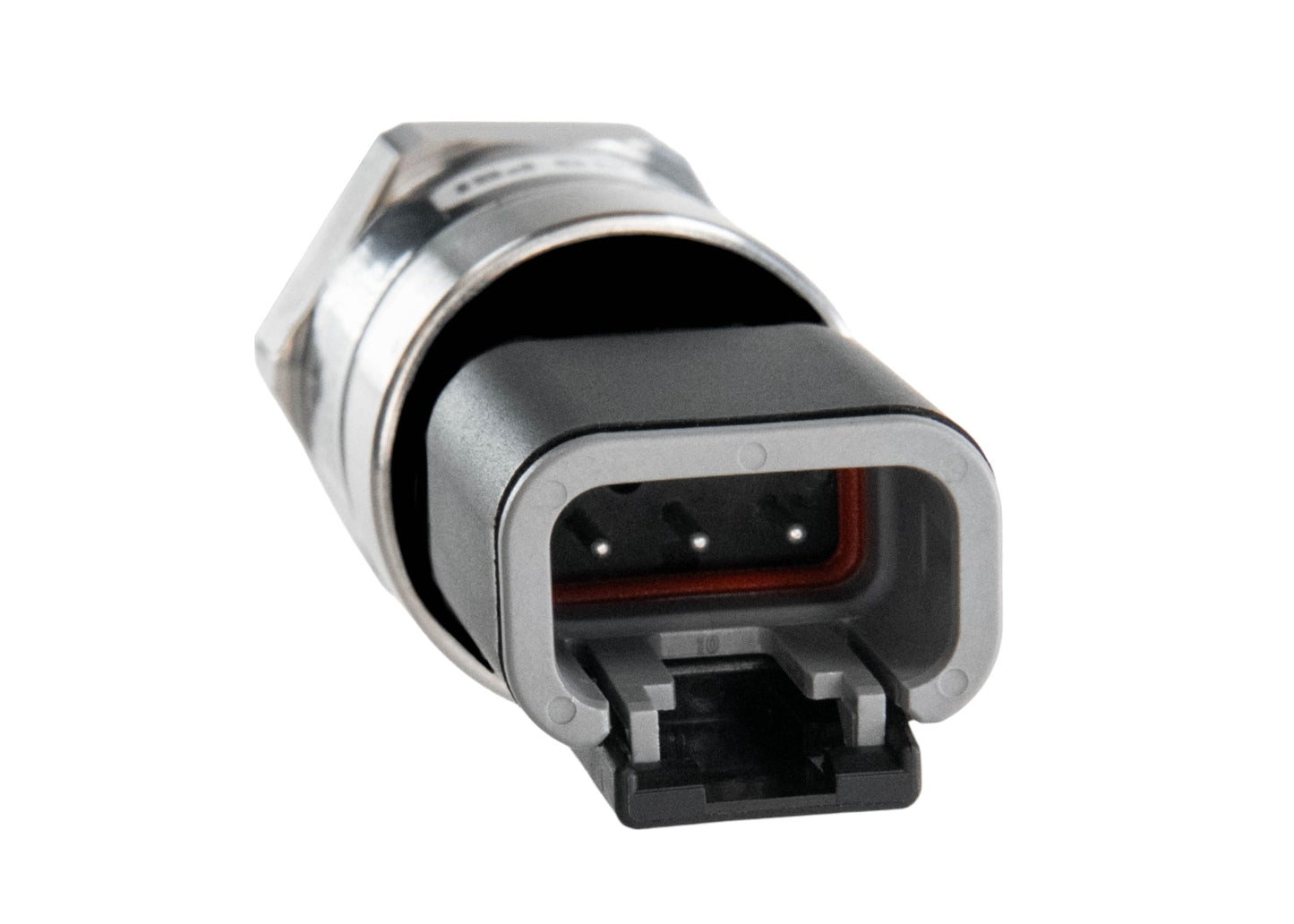

These sensors utilize a standard 3 pin Deutsch DTM style female connector

Add a male DTM connector kit w/ pins: Click Here
