RIFE G-Series 3.75" Shock Travel Sensor 52-1703

RIFE G-Series 3.75" Shock Travel Sensor 52-1703

Regular price $199.99 USD
Regular price $219.99 USD Sale price $199.99 USD
Sale Sold out



RIFE G-Series 3.75" Travel Shock Sensor 52-1703

Instructions: Click Here

Shock Travel Sensors by RIFE Sensors are built to perform on the track, delivering you shock position (linear travel position) with a consistent and dependable signal. These sensors are 0-5v and come in a variety of lengths to suit your shock package. Compatible with Holley EFI, Haltech, Fueltech, Motec, Racepak, AEM and more!

100% Made in the USA

Note: this is the G-Spot Sensor Shock Sensor acquired by Motion Raceworks/RIFE sensors in 2023

Features:

  • 3 Wire 0-5V Sensor Output
  • Each travel sensor is hand built and tested at Motion Raceworks
  • Optimized to 40 in/sec extension and compression
  • Sample rate at 10,200 Hz

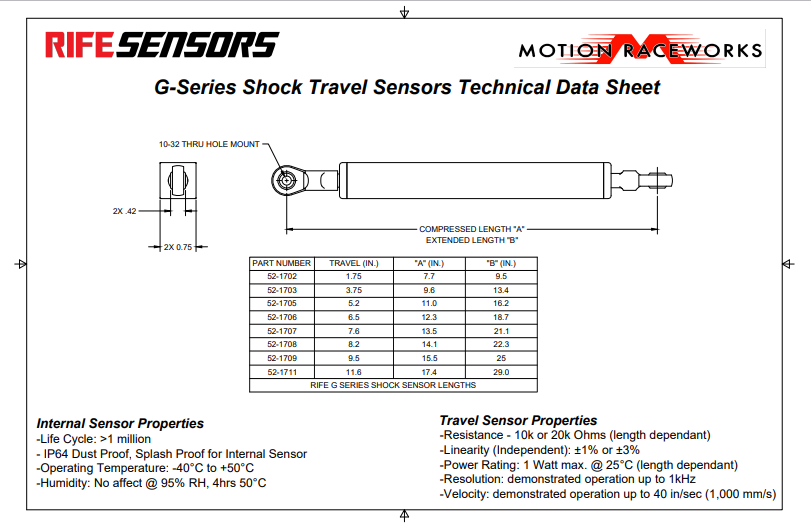

Specifications:

  • Compressed Length: 9.6"
  • Extended Max Length: 13.4"
  • Travel Length 3.75"
  • Eyelet size: #10 screw or .200 inch

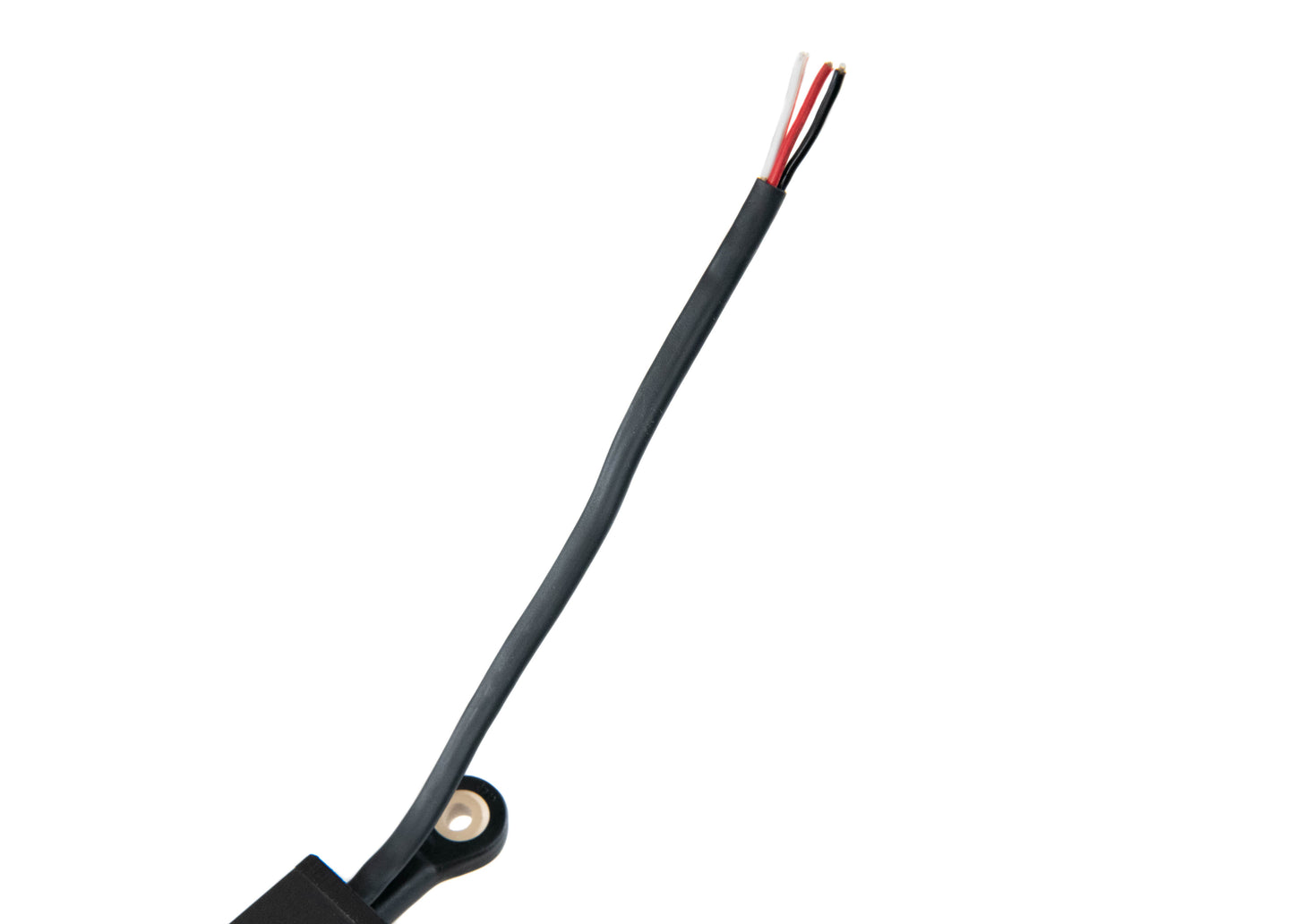

Wire Colors:

  • Red: 5v Sensor Power
  • White: Signal
  • Black: Sensor Ground

***Please note: Sensor Power and Ground must come directly from ECU or data logger. These must be dedicated sensor power and ground.***

    For calibration info: Click Here


    For our whole line of shock sensor lengths and mounts click the link below!

    https://www.motionraceworks.com/collections/rife-shock-travel-sensors
