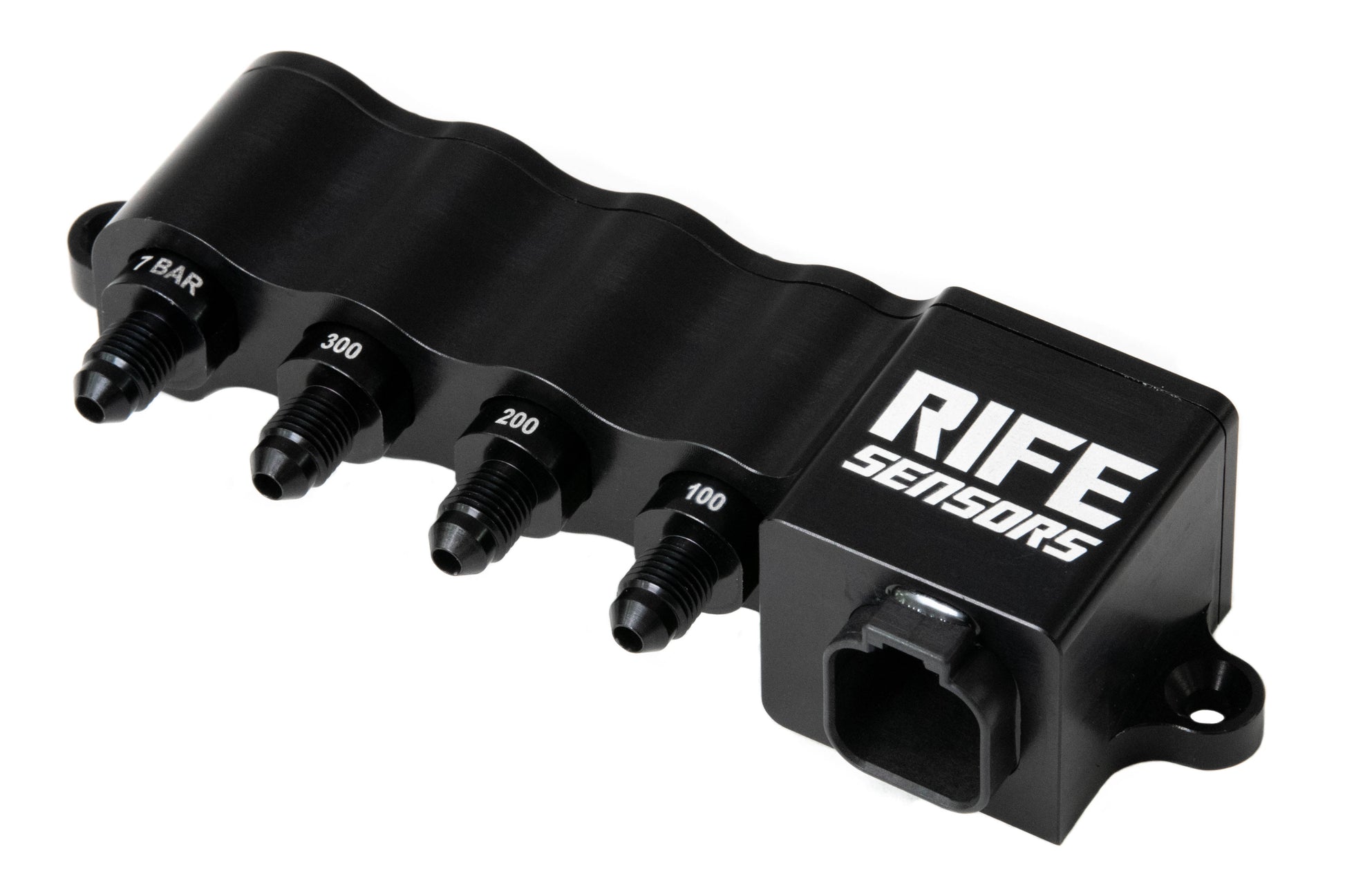

RIFE Quad Sensor Block (Choose Sensors)

RIFE Quad Sensor Block (Choose Sensors)

Features

• Vibration Isolated Sensors
• 4 Built In Pressure/MAP Sensors (Choose Sensors and Thread Style In Options)
• -3 AN Male or 1/8" NPT Female connections

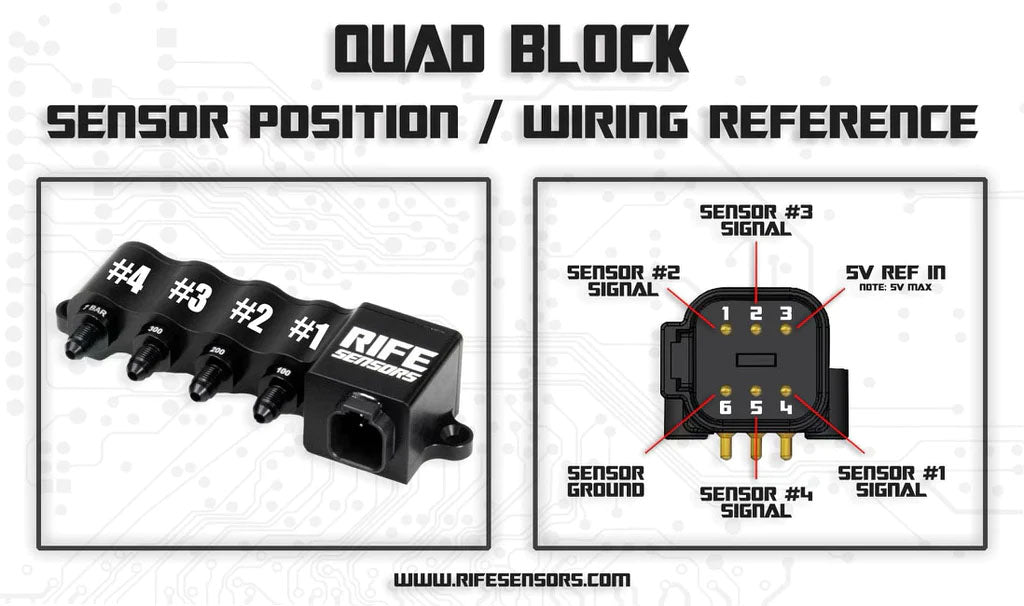

• Automotive Grade Deutsch DT connectors
• Sealed to IP69
• Billet aluminum construction
• Available in 1, 2, 3, or 4 sensor packages
• Custom configurations available
• Snubbers available to reduce damaging pressure spikes*
• Industry standard 0-5V output
• Compatible with all ECU’s/data loggers**
• Reduced wiring clutter
• Higher accuracy
• Faster response
• Flexible mounting options
• All wetted parts are 316 stainless, Viton or anodized aluminum
• Available sensor ranges
• 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
• 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi

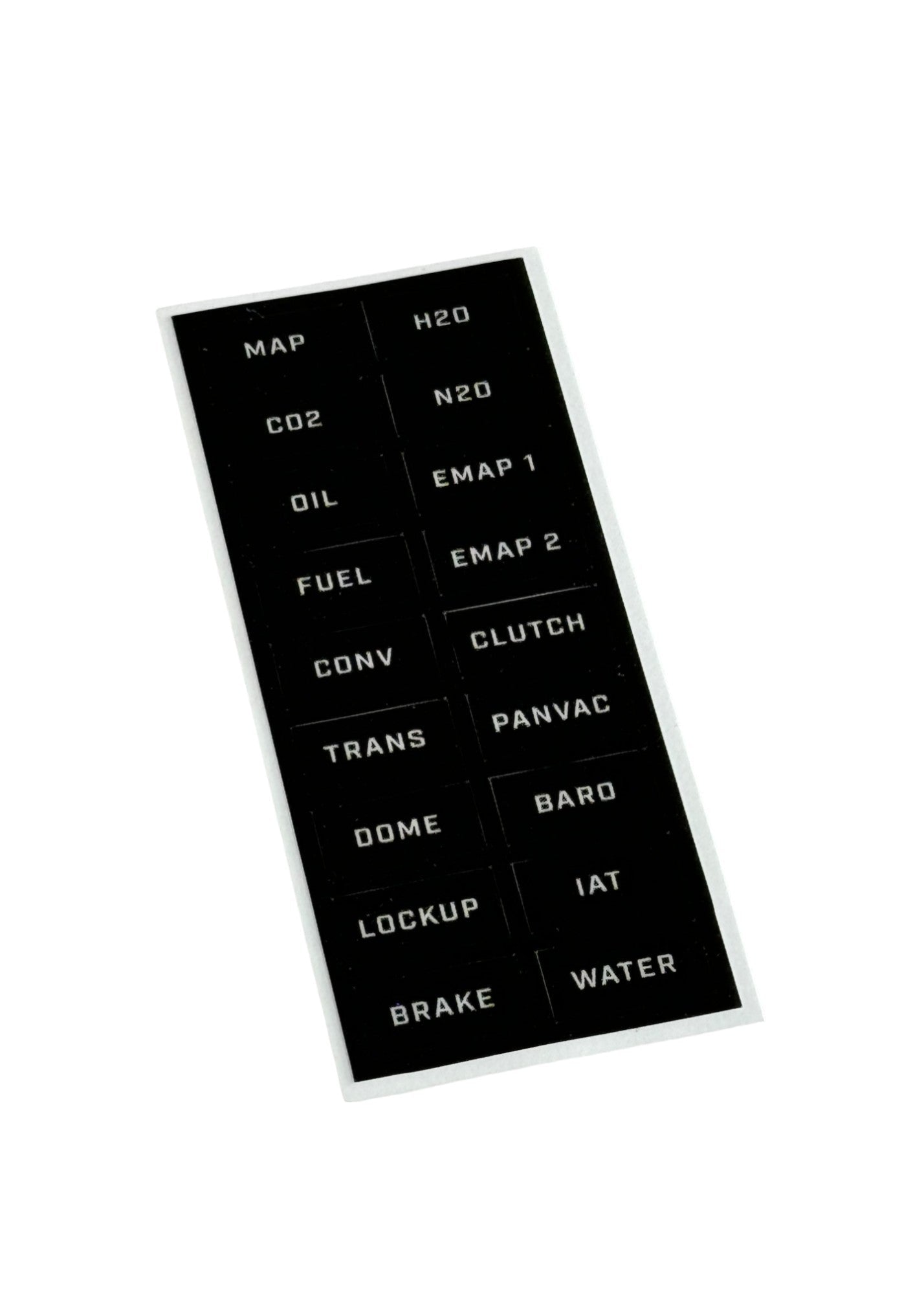

• Includes Label Sheet

*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

*Does not include harness. Click here to order the harness

For Data and Scaling Info : Click Here

Watch this video on the internals and the unique features of this sensor solution!
