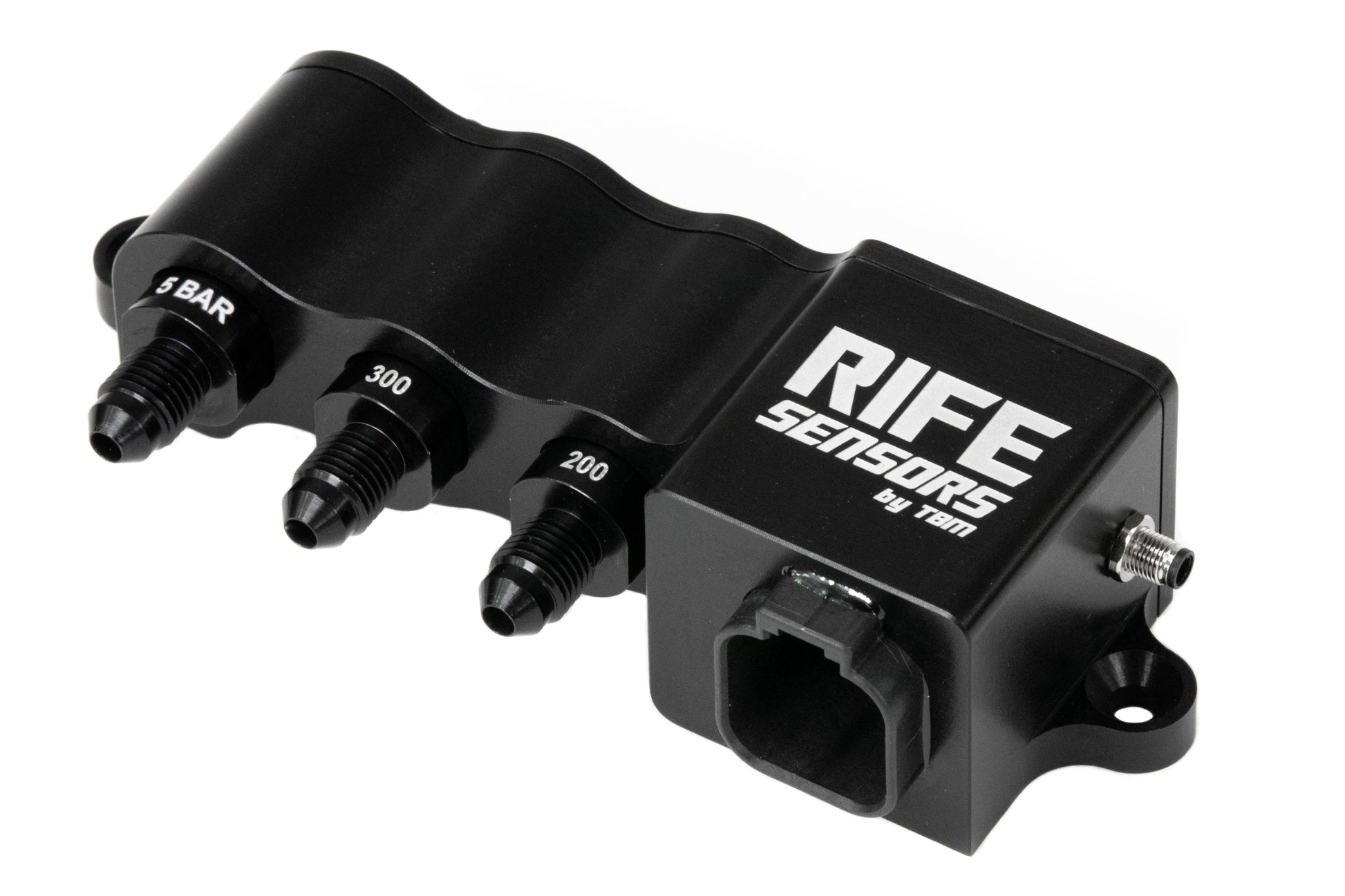

RIFE Triple Sensor Block + 1 M5 Input (Choose Sensors)

RIFE Triple Sensor Block + 1 M5 Expander (Choose Sensors)

Features

• Vibration isolated sensors
• 3 Built in Pressure/MAP sensors (Choose below)
• 1 expandable M5 input for external 3 wire 5v sensor
• -3 AN Male or 1/8" NPT Female connections
• Automotive Grade Deutsch DT connectors
• Sealed to IP69
• Billet aluminum construction
• Available in 1, 2, 3, or 4 sensor packages
• Custom configurations available
• Snubbers available to reduce damaging pressure spikes*
• Industry standard 0-5V output
• Compatible with all ECU’s/data loggers**
• Reduced wiring clutter
• Higher accuracy
• Faster response
• Flexible mounting options
• All wetted parts are 316 stainless, Viton or anodized aluminum
• 1 Bar, 2 bar 3 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
• 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi

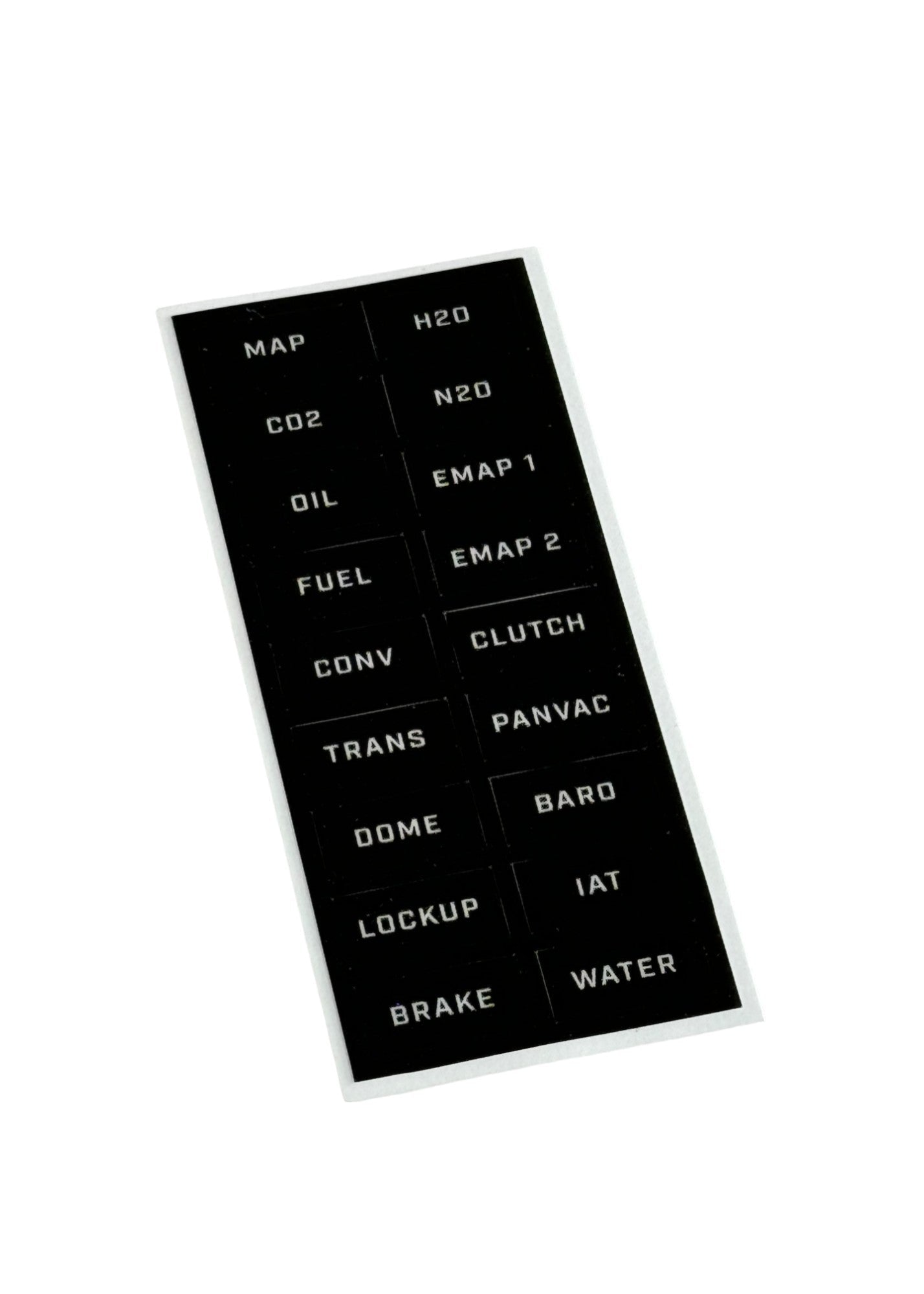

• Includes Label Sheet

*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

*Does not include harness. Click here to order the harness

For Wiring Data and Scaling Info: Click Here

Watch this video on the internals and the unique features of this sensor solution!
