S197 Coyote Mustang PCV Catch Can Kit

S197 Coyote Mustang Catch Can Kit

Please note: Some applications will or may need to be retuned as you are changing air flow post MAF sensor.  Please consult your tuner if you are unsure of the effects of this on your engine's tuning.

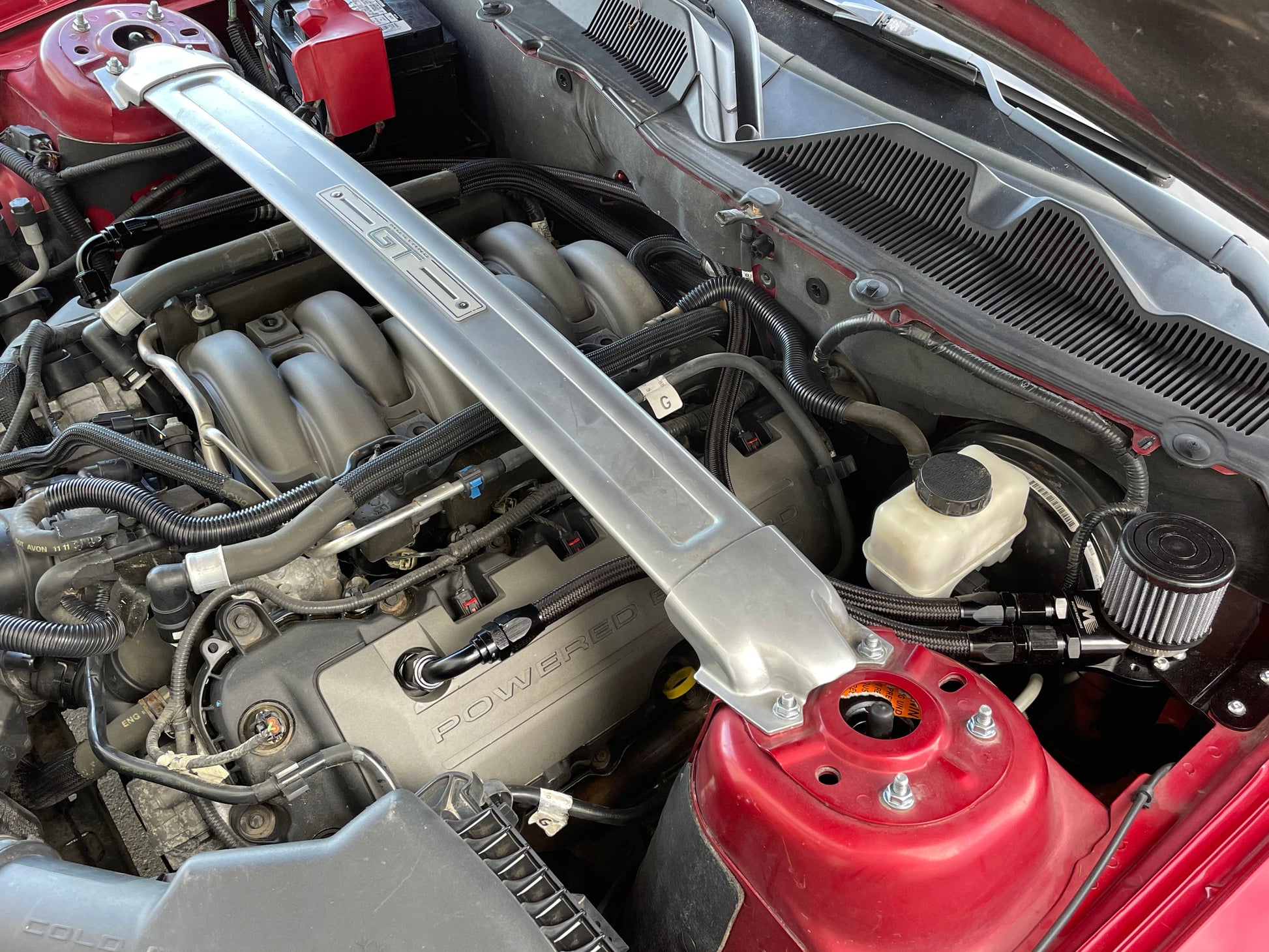

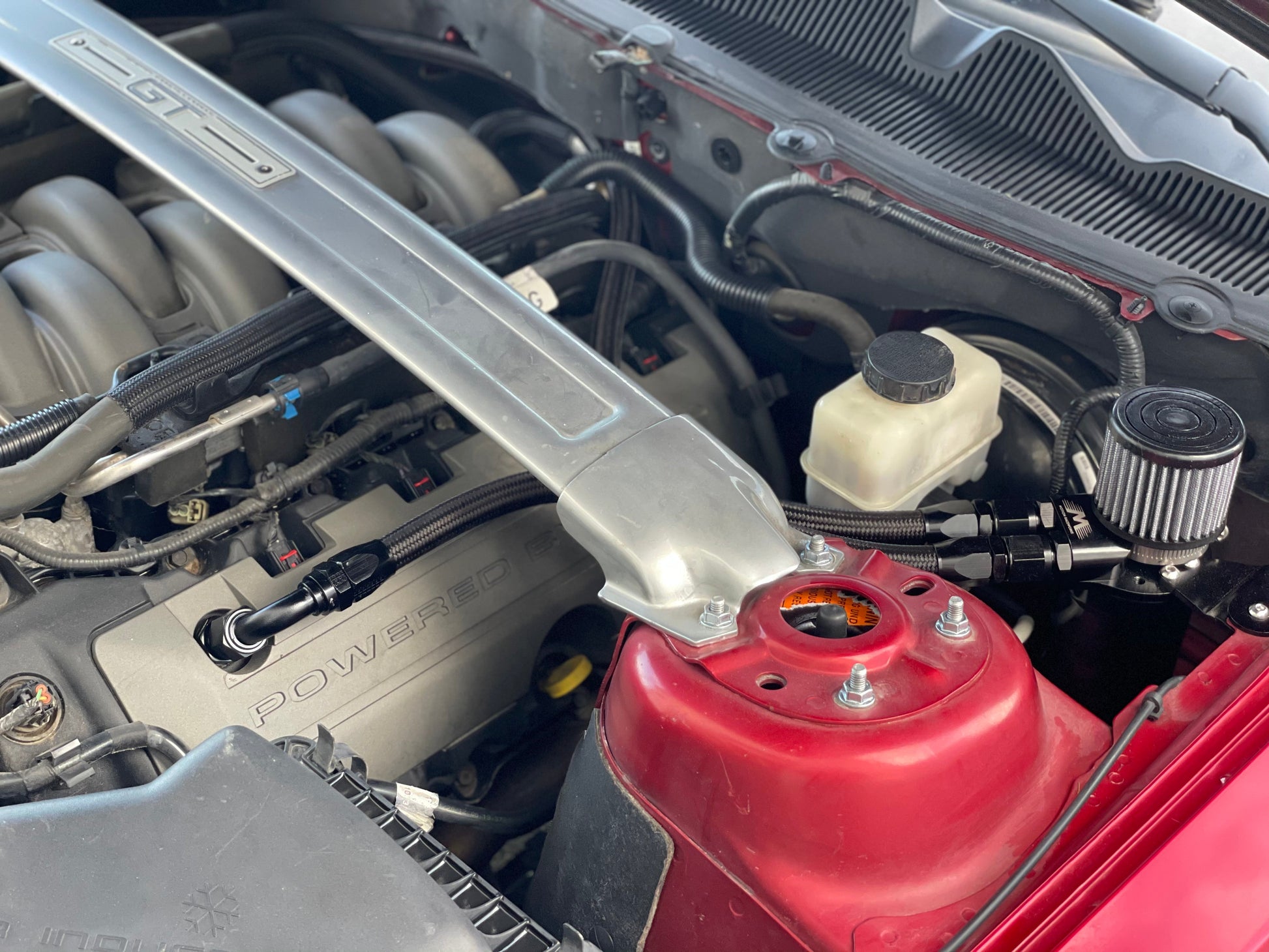

This bolt in kit is a solution for Coyote S197 Mustangs wishing to reroute harmful PCV particulate/air from the intake to an external catch can in order to separate oil which can cause detonation in an engine. This kit successfully mounts your new catch can in an area that does not conflict with any other possible modifications near the brake master cylinder.  This allows it to be universal and a great option for cars with aftermarket intakes, turbochargers, superchargers and more.

Our kit comes complete with everything needed to route lines from your factory valve covers to one of our included dual billet 10AN catch cans with the supplied bracket.  Included is enough line to route behind, over the top, or in front of an intake or supercharger. (Please Note: If you have not previously installed a cold air intake or aftermarket intake tube, some other vacuum plugs and port plugs may be required).

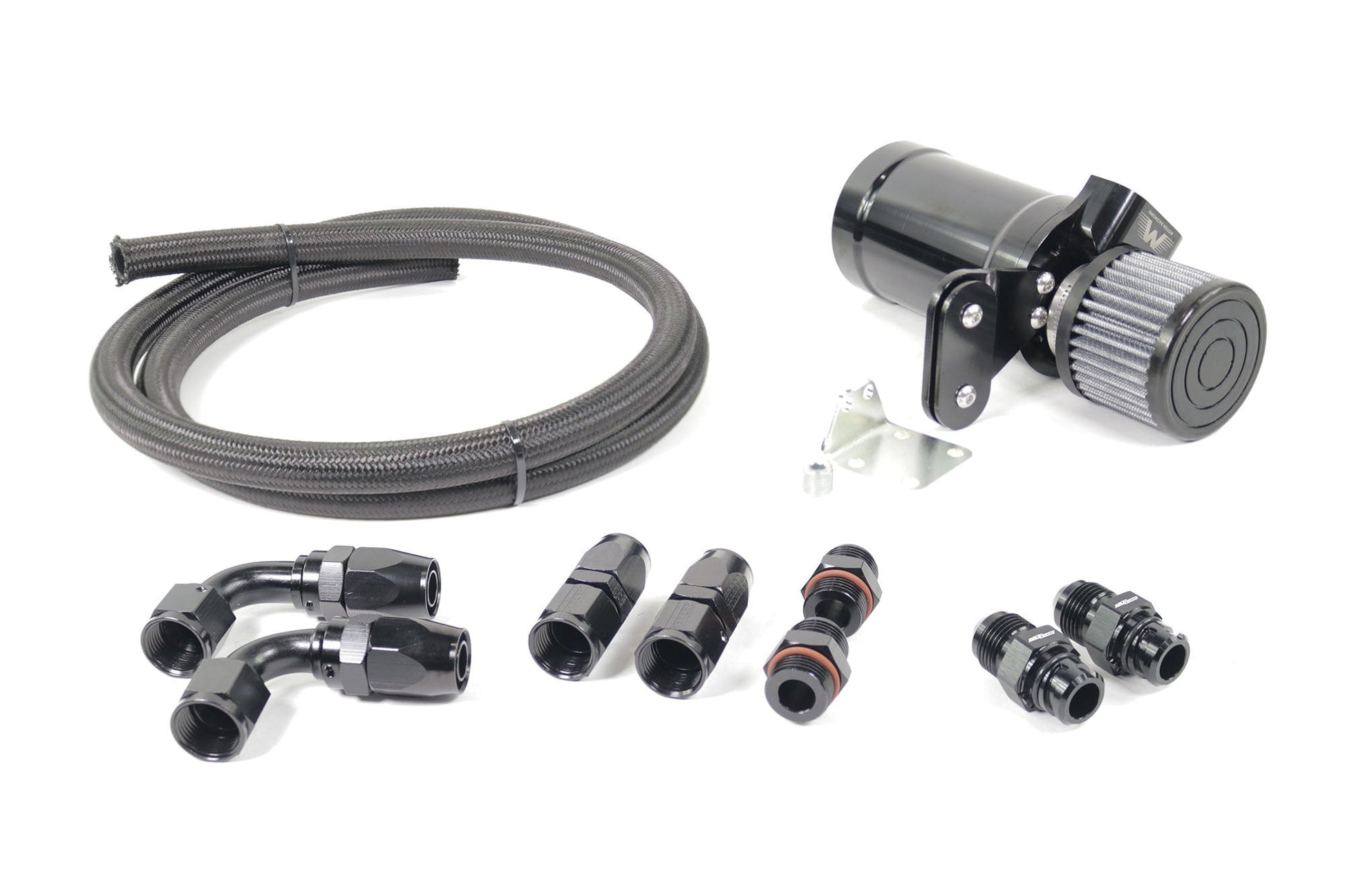

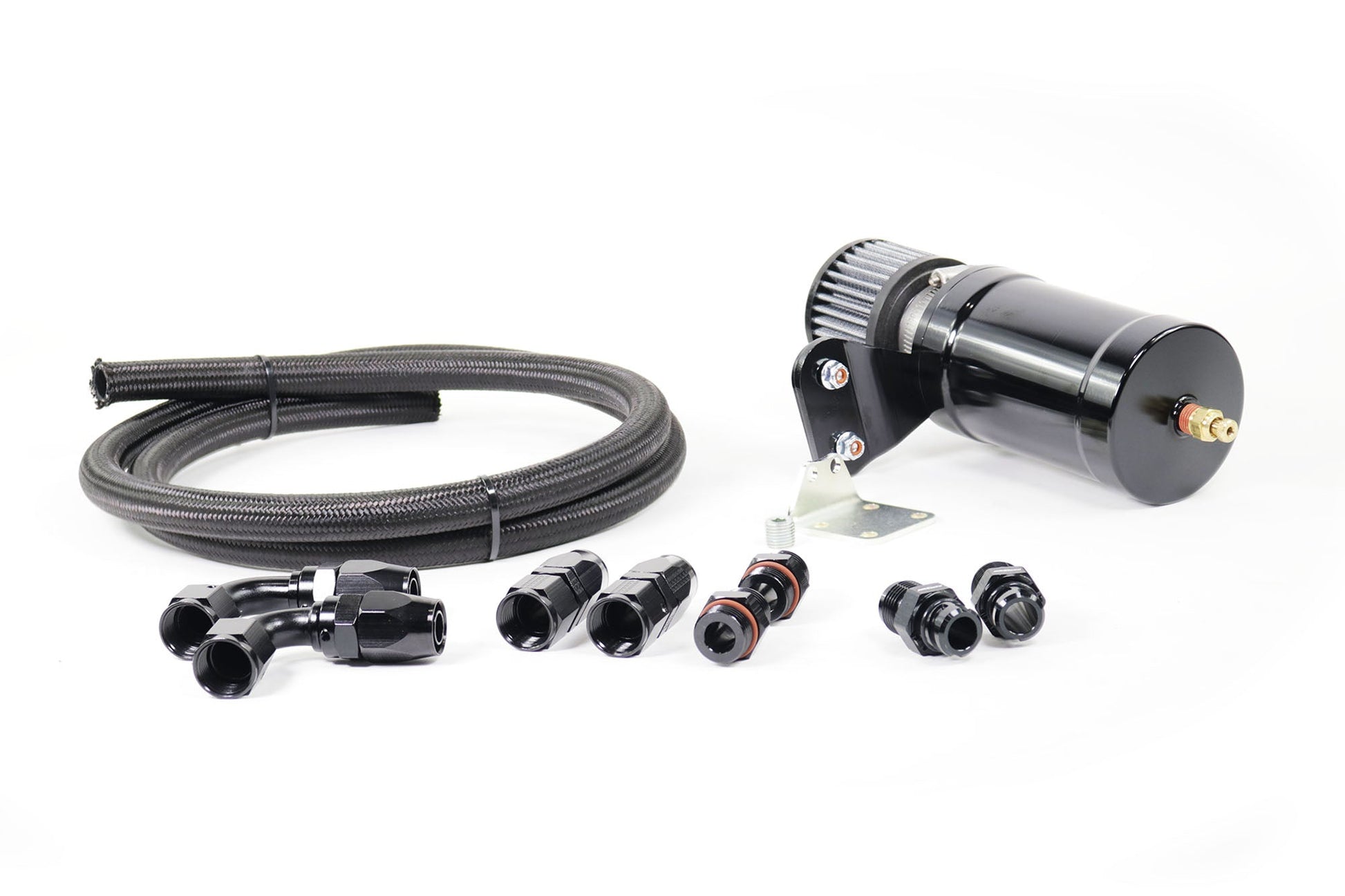

Included:

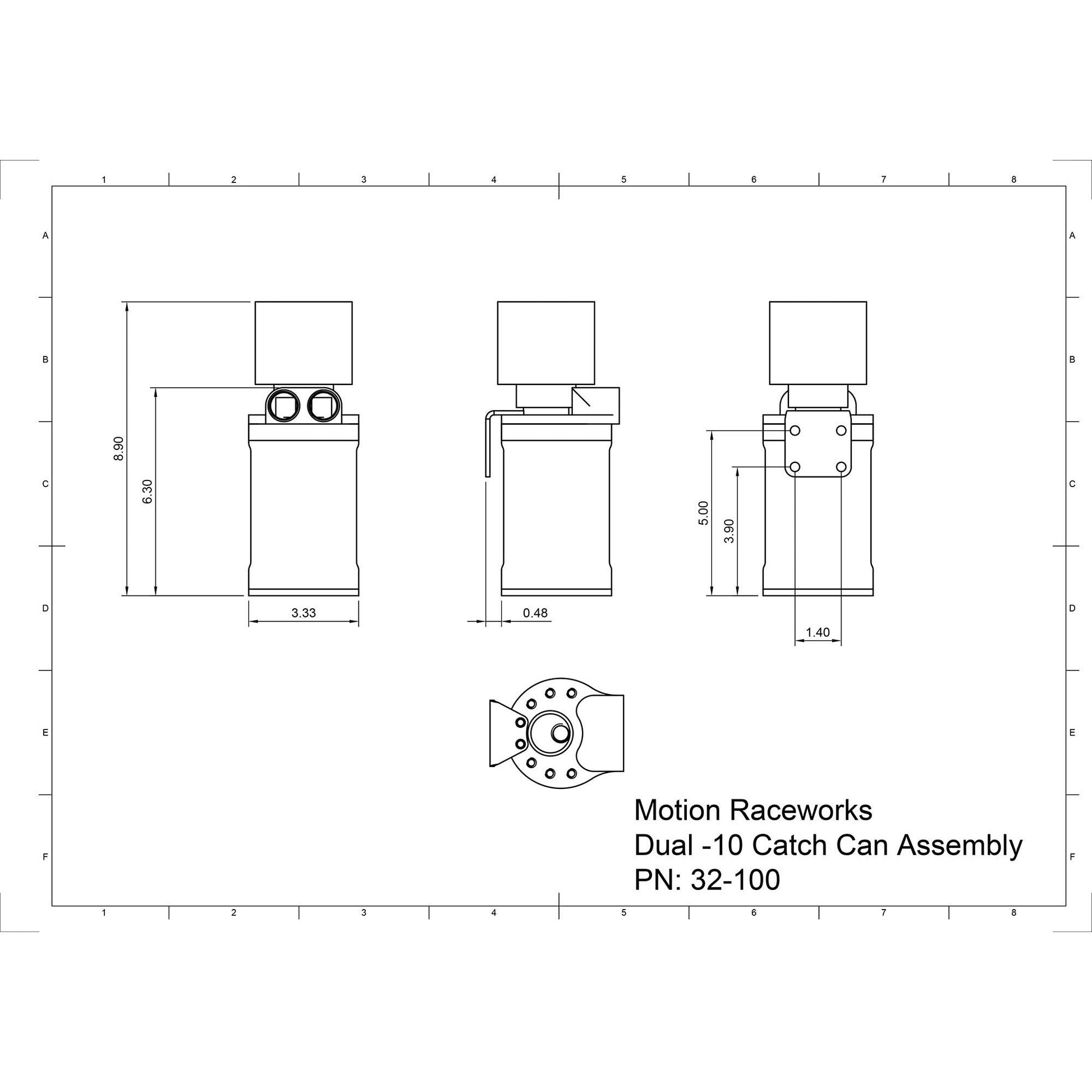

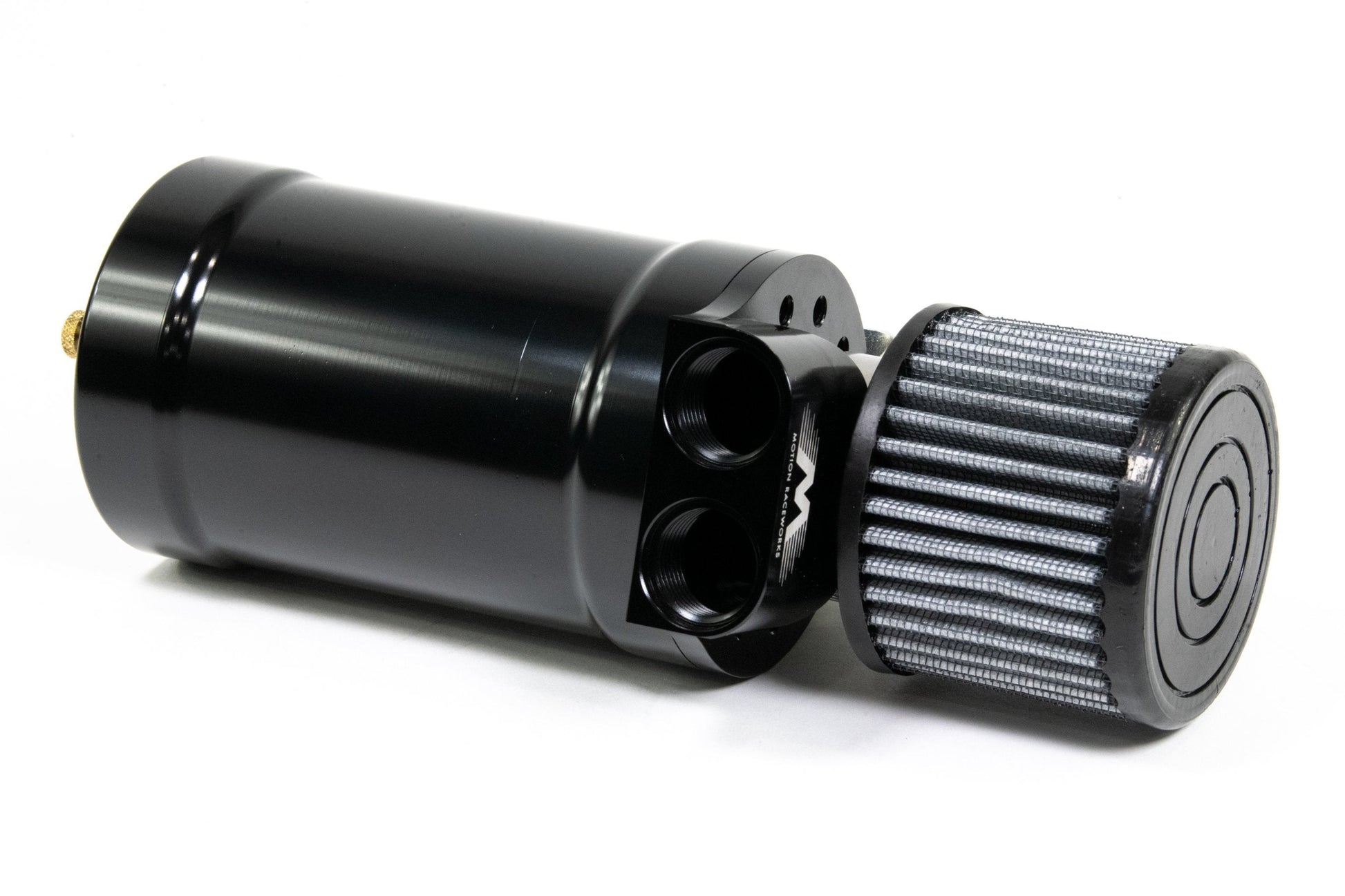

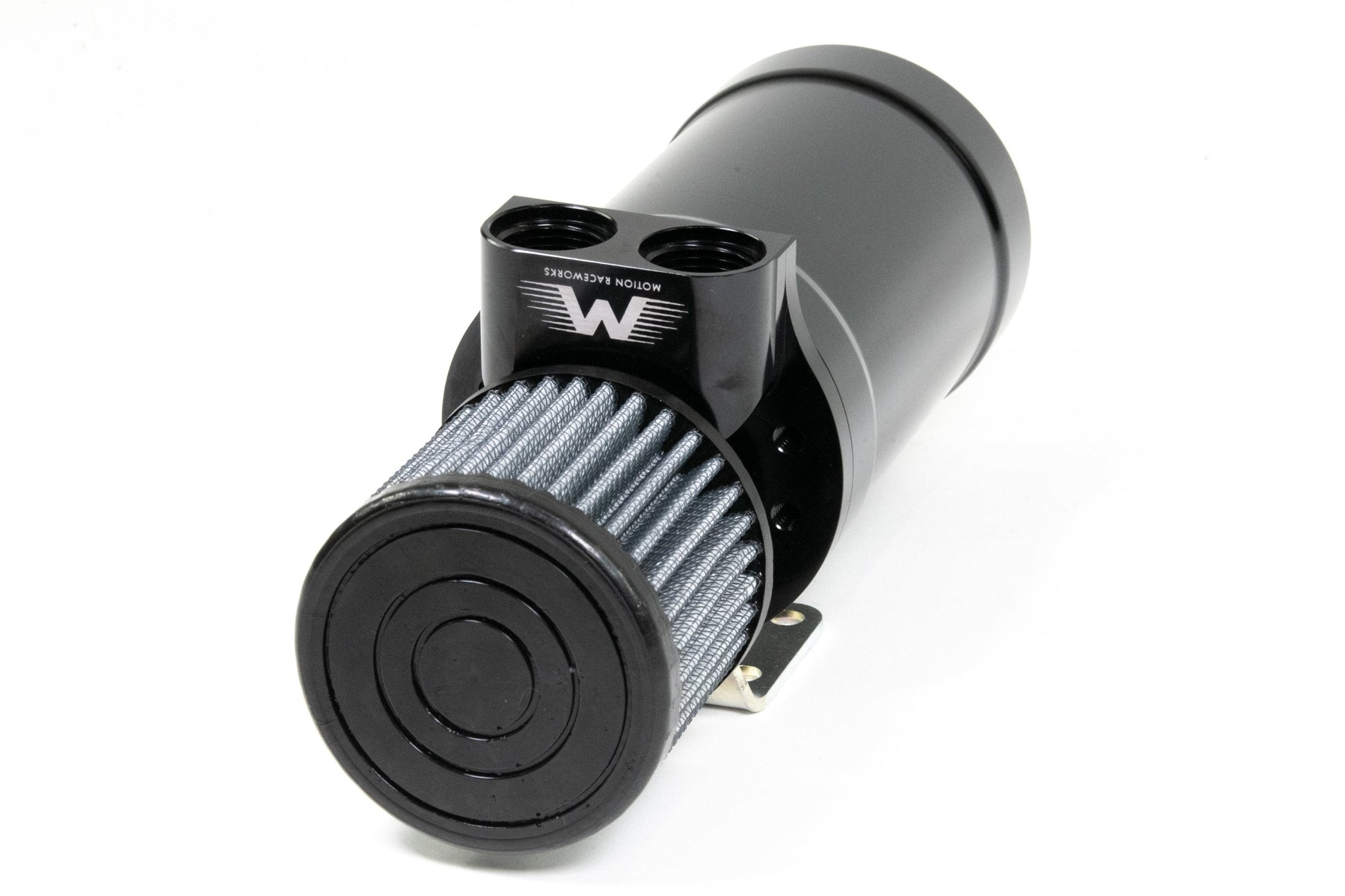

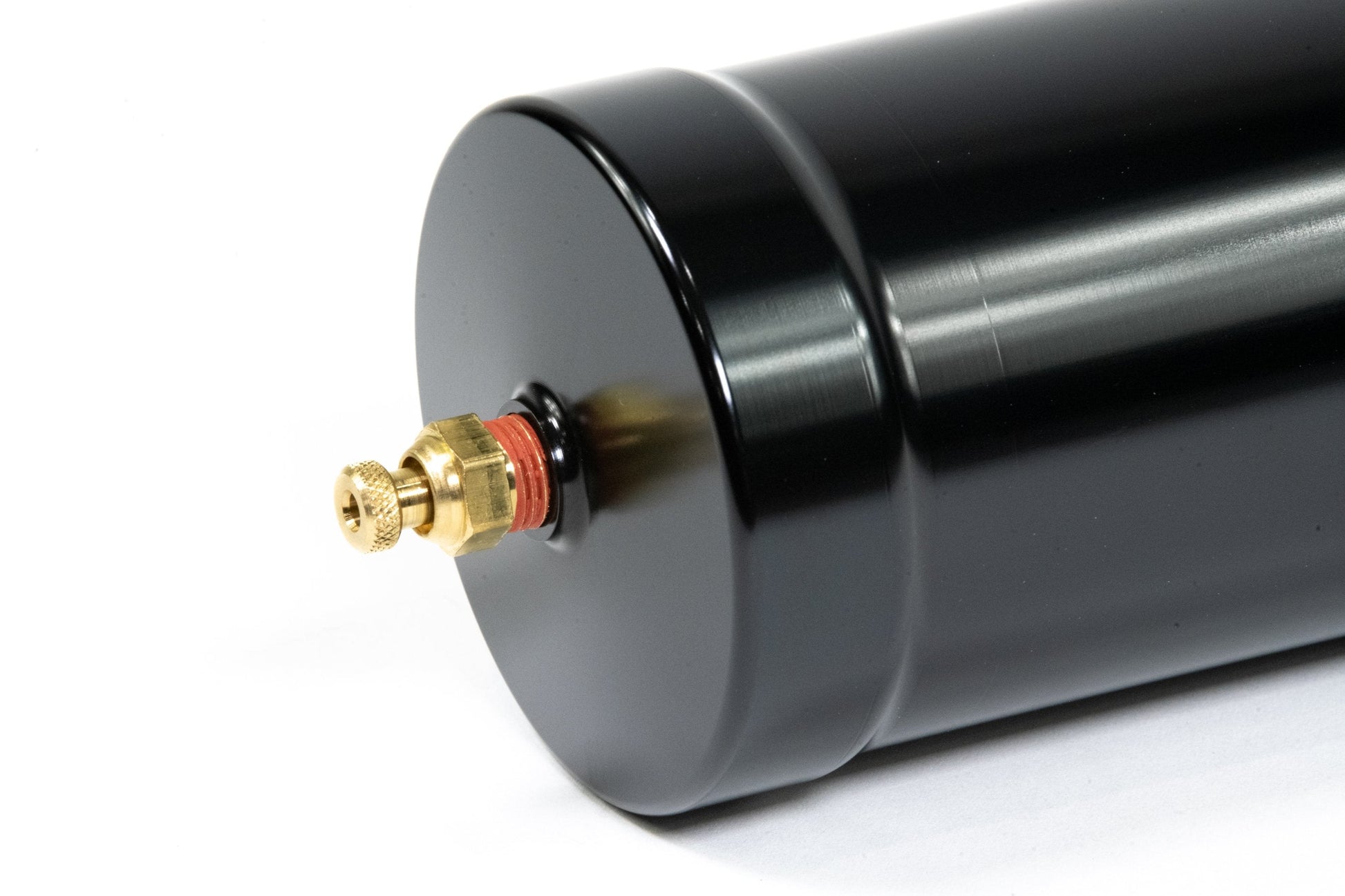

• Dual Billet 10AN catch can (32-100)

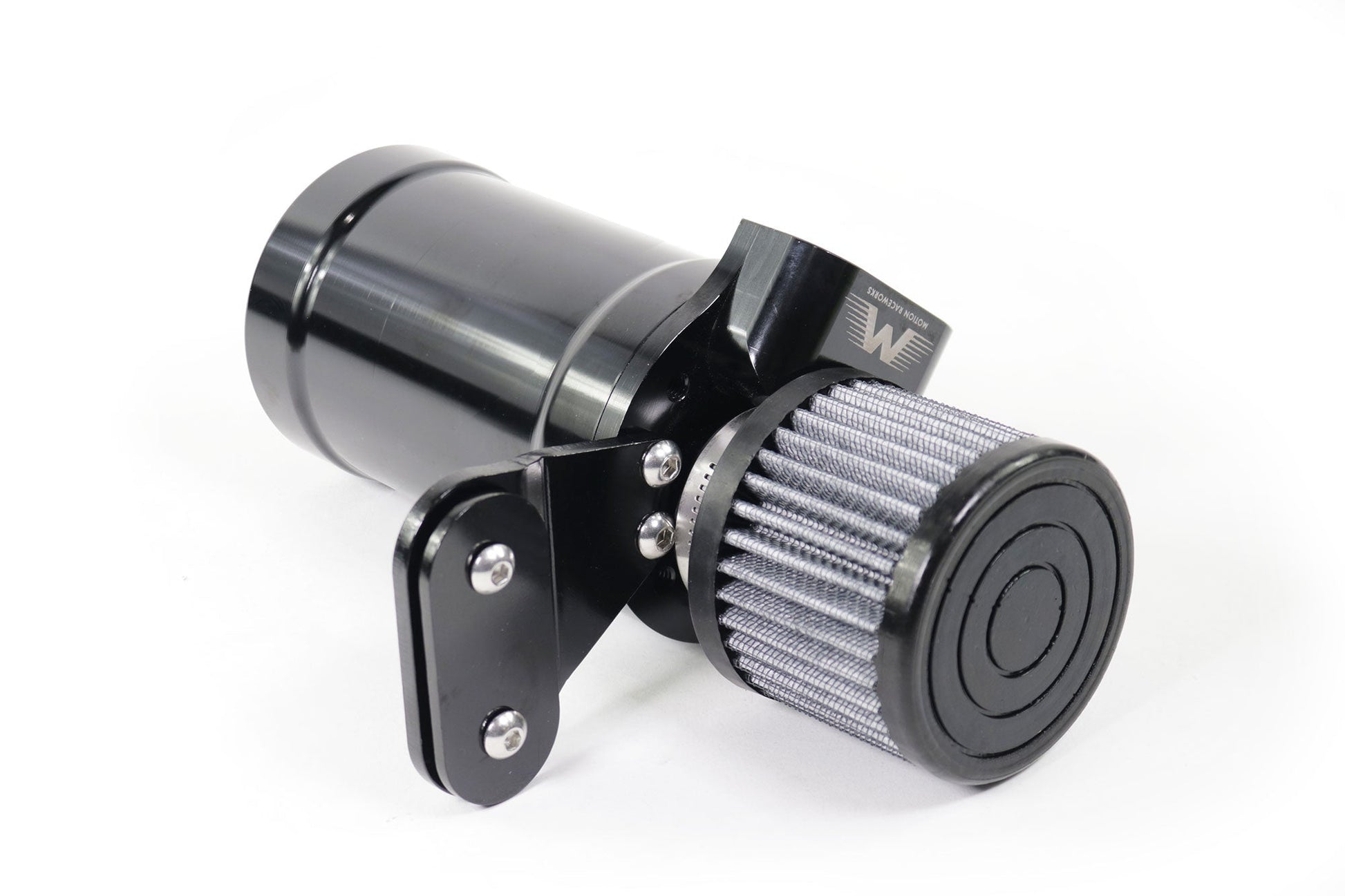

• Mounting Bracket for Inner Fender w/ Backing Plate (Black Anodized)
• All Necessary Hardware
• Coyote 10AN fittings to replace factory valve cover PCV ports
• (2) 10AN 90 degree Fragola hose ends
• (2) 10AN Straight Fragola hose ends
• (2) 10ORB to 10AN fittings for Catch Can
• 6 ft. Braided Black Nylon Fragola Hose

Suggested Items:

https://www.motionraceworks.com/products/2011-17-coyote-5-0-ford-boost-vacuum-port-only-intake-fitting

Please see notes below

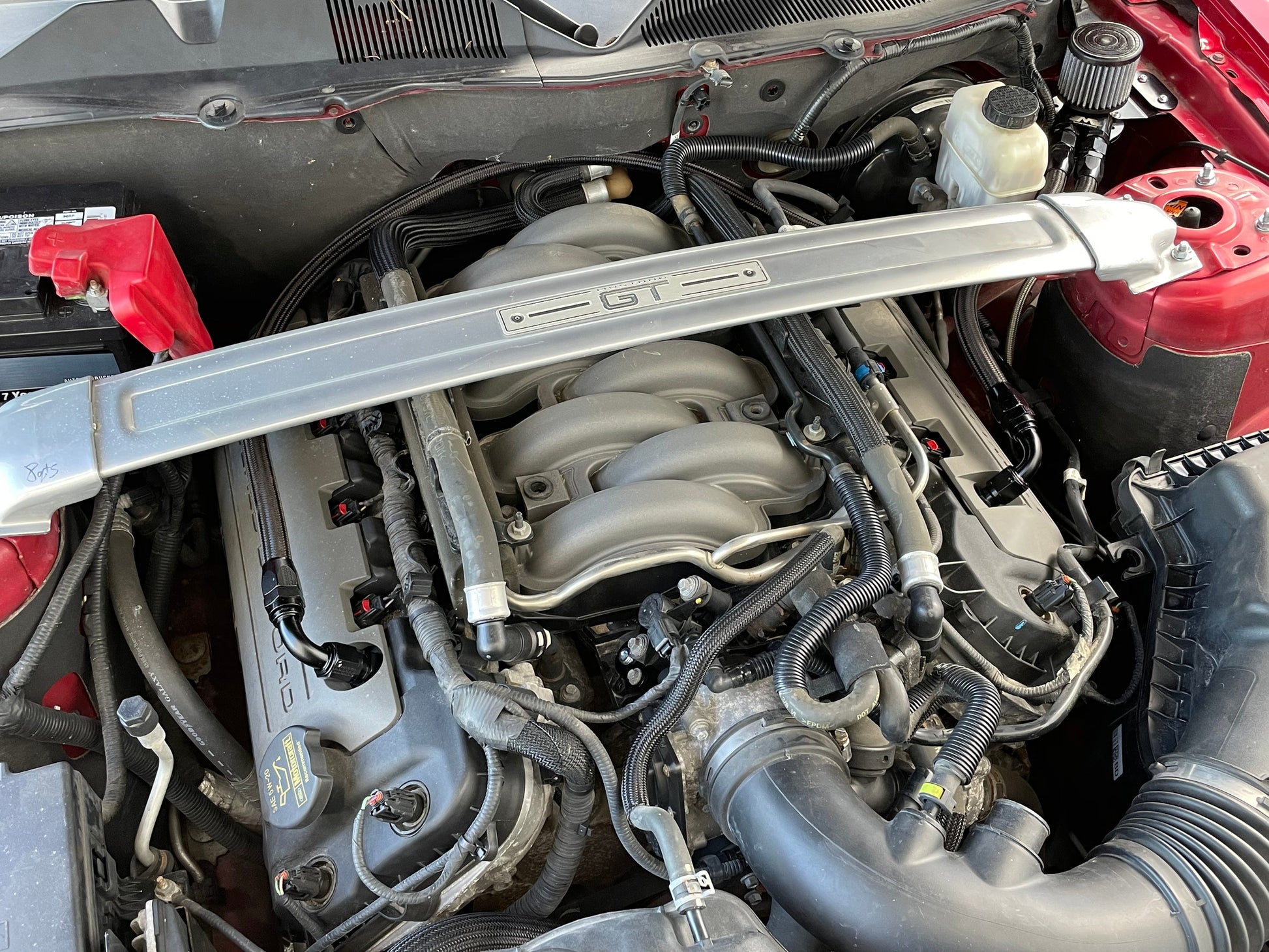

Note: If you have a factory intake manifold and have not capped off the line pictured below that goes into the intake, you will need to purchase and install a vacuum cap or the following port plug which can adapt to 1/4" NPT for connecting a vacuum/boost reference block.

If removing the factory intake tube, you will need this plug for the firewall to seal off the engine bay to firewall to avoid heat and fumes.  This can be found at most auto parts stores. Dorman Part # 42098

If reusing factory intake air filter tube, other caps and plugs will be necessary to avoid un monitored air post MAF sensor.
