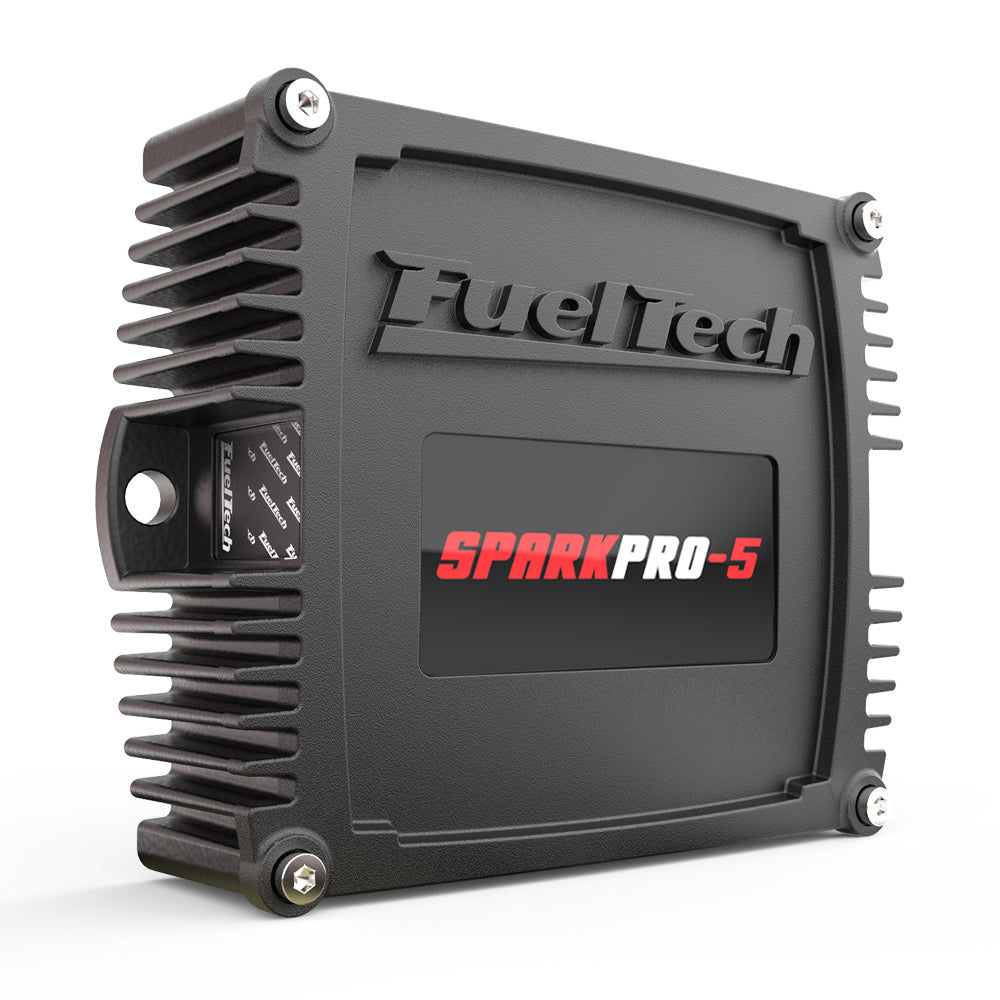

SparkPRO-5

• Description
• Downloads

• FuelTech’s SparkPRO-5 is a high-energy inductive ignition module designed to be used with ignition coils without an igniter (dumb coils). The SparkPRO-5 has 5 ignition outputs, each output may be connected to only one coil at a time, and is available in versions from 1 to 8 ignition outputs. It has a high voltage of up to 430V at the coil’s primary. SparkPRO ignition modules are compatible with any programmable ECU that has dwell control but cannot be used with a stock ECU.
•  SparkPRO Manual


Features

• High energy inductive ignition
• SparkPRO-5 - 5 ignition outputs
• Available in versions from 1 to 8 ignition outputs
• High Voltage at the coil’s primary: up to 430V

Technical Description

• Used only with “dumb” coils (coils without igniter)
• Each SparkPRO channel can be connected to only one coil at a time
• Compatible with any programmable ECU that has dwell control
• Cannot be used with stock ECU
• Dimensions: 115 x 90 x 33mm

Contents of Packaging

• 1 SparkPRO-5
• 1 Operation and installation guide
• 1 FuelTech black carbon fiber sticker

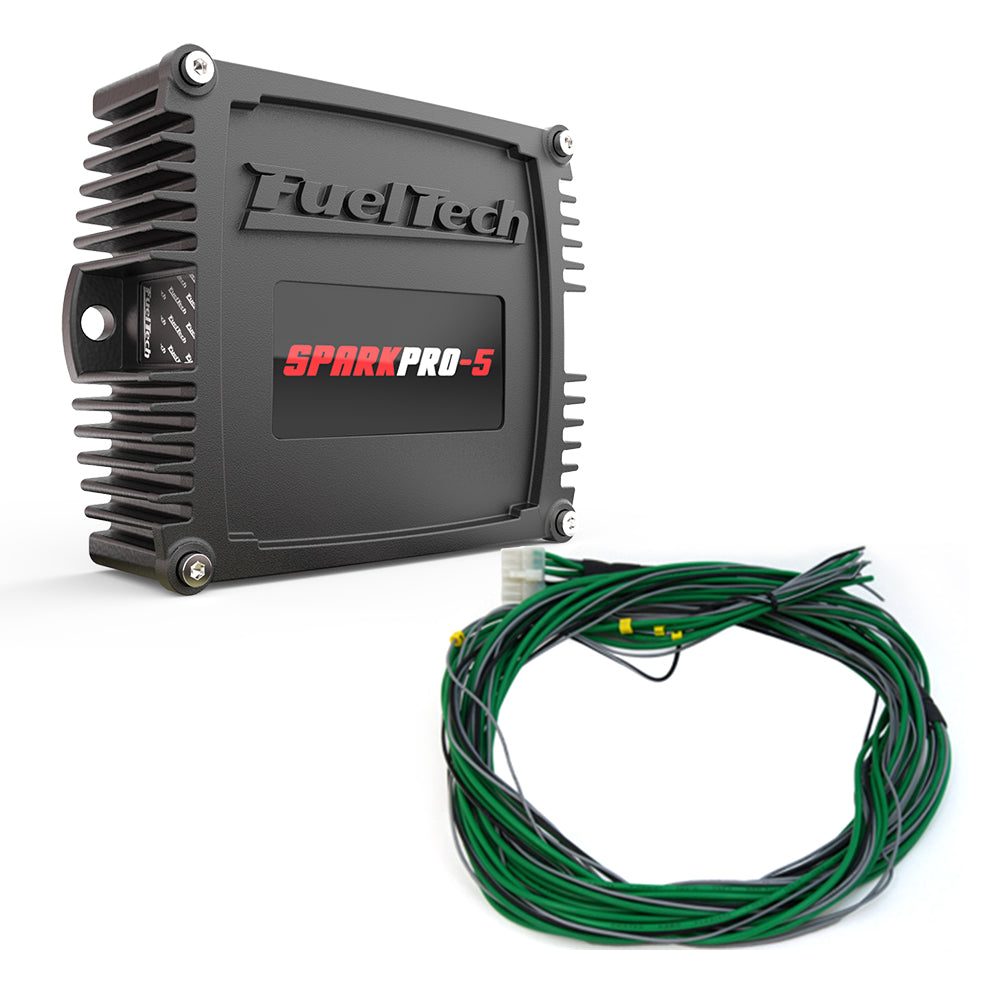

SparkPRO-5 Ignition Wiring harness Sold Separately.
